Quad-mesh based isometric mappings and developable surfaces

Caigui Jiang, Cheng Wang, Florian Rist, Johannes Wallner, Helmut Pottmann

Keywords: computer-aided design, shape optimization, computational fabrication, discrete differential geometry, developable spline surface, discrete isometry, developable surface

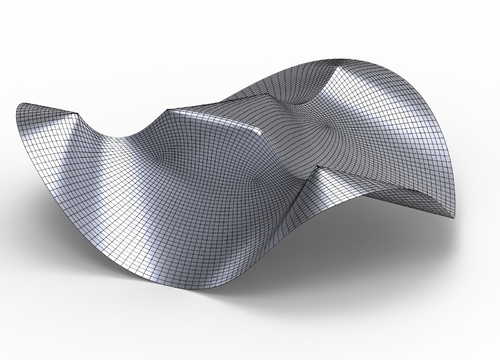

Abstract: We discretize isometric mappings between surfaces as correspondences between checkerboard patterns derived from quad meshes. This method captures the degrees of freedom inherent in smooth isometries and enables a natural definition of discrete developable surfaces. This definition, which is remarkably simple, leads to a class of discrete developables which is much more flexible in applications than previous concepts of discrete developables. In this paper, we employ optimization to efficiently compute isometric mappings, conformal mappings and isometric bending of surfaces. We perform geometric modeling of developables, including cutting, gluing and folding. The discrete mappings presented here have applications in both theory and practice: We propose a theory of curvatures derived from a discrete Gauss map as well as a construction of watertight CAD models consisting of developable spline surfaces.

The video of this talk cannot be embedded. You can watch it here:
https://dl.acm.org/doi/10.1145/3386569.3392430#sec-supp
(Link will open in new window)
 0
 0
 0
 0
This is an embedded video. Talk and the respective paper are published at SIGGRAPH 2020 virtual conference. If you are one of the authors of the paper and want to manage your upload, see the question "My papertalk has been externally embedded..." in the FAQ section.
